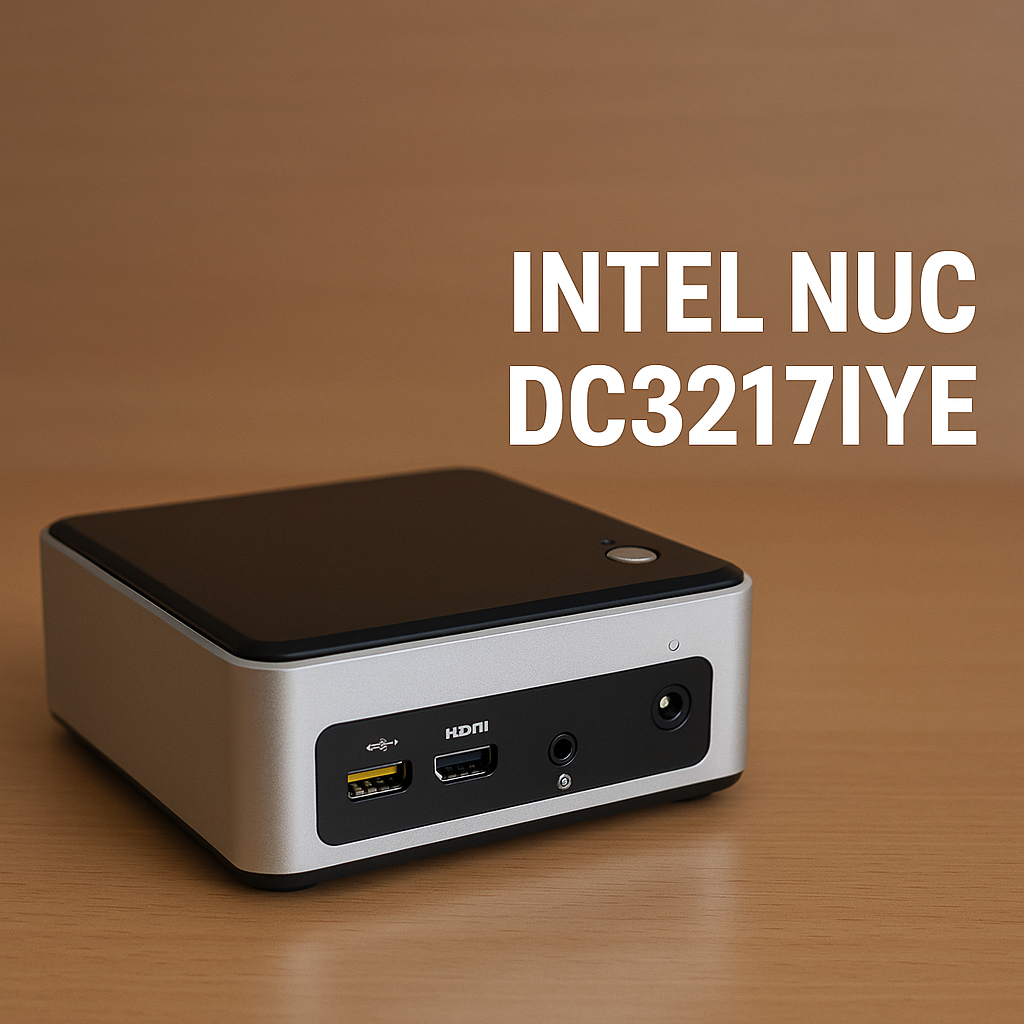

Intel NUC DC3217IYE

2012.11.30

現行サーバのリプレース用にIntel NUC機を購入。TranscendのSODIMM 8GB x 2に、OCZの120GB SSDという構成。

hdparmはこんな。

# hdparm -tT /dev/sda

/dev/sda:
 Timing cached reads:   9836 MB in  2.00 seconds = 4923.67 MB/sec
 Timing buffered disk reads:  588 MB in  3.01 seconds = 195.42 MB/sec

lspciはこんな。

# lspci
00:00.0 Host bridge: Intel Corporation 3rd Gen Core processor DRAM Controller (rev 09)
00:02.0 VGA compatible controller: Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09)
00:16.0 Communication controller: Intel Corporation 7 Series Chipset Family MEI Controller #1 (rev 04)
00:19.0 Ethernet controller: Intel Corporation 82579V Gigabit Network Connection (rev 04)
00:1a.0 USB controller: Intel Corporation 7 Series Chipset Family USB Enhanced Host Controller #2 (rev 04)
00:1b.0 Audio device: Intel Corporation 7 Series Chipset Family High Definition Audio Controller (rev 04)
00:1d.0 USB controller: Intel Corporation 7 Series Chipset Family USB Enhanced Host Controller #1 (rev 04)
00:1f.0 ISA bridge: Intel Corporation QS77 Express Chipset LPC Controller (rev 04)
00:1f.2 SATA controller: Intel Corporation 7 Series Chipset Family 6-port SATA AHCI Controller (rev 04)
00:1f.3 SMBus: Intel Corporation 7 Series Chipset Family SMBus Controller (rev 04)

dmidecodeはこんな。

# dmidecode
# dmidecode 2.11
SMBIOS 2.7 present.
49 structures occupying 2234 bytes.
Table at 0x000EB7B0.

Handle 0x0000, DMI type 0, 24 bytes
BIOS Information
	Vendor: Intel Corp.
	Version: GKPPT10H.86A.0020.2012.0919.2135
	Release Date: 09/19/2012
	Address: 0xF0000
	Runtime Size: 64 kB
	ROM Size: 6400 kB
	Characteristics:
		PCI is supported
		BIOS is upgradeable
		BIOS shadowing is allowed
		Boot from CD is supported
		Selectable boot is supported
		BIOS ROM is socketed
		EDD is supported
		5.25"/1.2 MB floppy services are supported (int 13h)
		3.5"/720 kB floppy services are supported (int 13h)
		3.5"/2.88 MB floppy services are supported (int 13h)
		Print screen service is supported (int 5h)
		Serial services are supported (int 14h)
		Printer services are supported (int 17h)
		ACPI is supported
		USB legacy is supported
		BIOS boot specification is supported
		Targeted content distribution is supported
		UEFI is supported
	BIOS Revision: 4.6

Handle 0x0001, DMI type 1, 27 bytes
System Information
	Manufacturer:
	Product Name:
	Version:
	Serial Number:
	UUID: F8D14180-34D4-11E1-9940-ECA86BF1E79D
	Wake-up Type: Power Switch
	SKU Number: To be filled by O.E.M.
	Family: To be filled by O.E.M.

Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
	Manufacturer: Intel Corporation
	Product Name: D33217GKE
	Version: G76540-201
	Serial Number: GEGK244000BB
	Asset Tag:
	Features:
		Board is a hosting board
		Board is replaceable
	Location In Chassis: Not Specified
	Chassis Handle: 0x0003
	Type: Motherboard
	Contained Object Handles: 0

Handle 0x0003, DMI type 3, 22 bytes
Chassis Information
	Manufacturer:
	Type: Desktop
	Lock: Not Present
	Version:
	Serial Number:
	Asset Tag:
	Boot-up State: Safe
	Power Supply State: Safe
	Thermal State: Safe
	Security Status: None
	OEM Information: 0x00000000
	Height: Unspecified
	Number Of Power Cords: 1
	Contained Elements: 0
	SKU Number: To be filled by O.E.M.

Handle 0x0004, DMI type 7, 19 bytes
Cache Information
	Socket Designation: CPU Internal L1
	Configuration: Enabled, Not Socketed, Level 1
	Operational Mode: Write Through
	Location: Internal
	Installed Size: 128 kB
	Maximum Size: 128 kB
	Supported SRAM Types:
		Unknown
	Installed SRAM Type: Unknown
	Speed: Unknown
	Error Correction Type: Parity
	System Type: Data
	Associativity: 8-way Set-associative

Handle 0x0005, DMI type 7, 19 bytes
Cache Information
	Socket Designation: CPU Internal L2
	Configuration: Enabled, Not Socketed, Level 2
	Operational Mode: Write Through
	Location: Internal
	Installed Size: 512 kB
	Maximum Size: 512 kB
	Supported SRAM Types:
		Unknown
	Installed SRAM Type: Unknown
	Speed: Unknown
	Error Correction Type: Multi-bit ECC
	System Type: Unified
	Associativity: 8-way Set-associative

Handle 0x0006, DMI type 7, 19 bytes
Cache Information
	Socket Designation: CPU Internal L3
	Configuration: Enabled, Not Socketed, Level 3
	Operational Mode: Write Back
	Location: Internal
	Installed Size: 3072 kB
	Maximum Size: 3072 kB
	Supported SRAM Types:
		Unknown
	Installed SRAM Type: Unknown
	Speed: Unknown
	Error Correction Type: Multi-bit ECC
	System Type: Unified
	Associativity: 12-way Set-associative

Handle 0x0007, DMI type 16, 23 bytes
Physical Memory Array
	Location: System Board Or Motherboard
	Use: System Memory
	Error Correction Type: None
	Maximum Capacity: 16 GB
	Error Information Handle: Not Provided
	Number Of Devices: 2

Handle 0x0008, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A1
	Internal Connector Type: None
	External Reference Designator: PS2Mouse
	External Connector Type: PS/2
	Port Type: Mouse Port

Handle 0x0009, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A1
	Internal Connector Type: None
	External Reference Designator: Keyboard
	External Connector Type: PS/2
	Port Type: Keyboard Port

Handle 0x000A, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2A1
	Internal Connector Type: None
	External Reference Designator: TV Out
	External Connector Type: Mini Centronics Type-14
	Port Type: Other

Handle 0x000B, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2A2A
	Internal Connector Type: None
	External Reference Designator: COM A
	External Connector Type: DB-9 male
	Port Type: Serial Port 16550A Compatible

Handle 0x000C, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2A2B
	Internal Connector Type: None
	External Reference Designator: Video
	External Connector Type: DB-15 female
	Port Type: Video Port

Handle 0x000D, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A1
	Internal Connector Type: None
	External Reference Designator: USB1
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000E, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A1
	Internal Connector Type: None
	External Reference Designator: USB2
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000F, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A1
	Internal Connector Type: None
	External Reference Designator: USB3
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0010, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9A1 - TPM HDR
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0011, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9C1 - PCIE DOCKING CONN
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0012, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2B3 - CPU FAN
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0013, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J6C2 - EXT HDMI
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0014, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3C1 - GMCH FAN
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0015, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1D1 - ITP
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0016, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E2 - MDC INTPSR
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0017, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E4 - MDC INTPSR
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0018, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E3 - LPC HOT DOCKING
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0019, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E1 - SCAN MATRIX
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001A, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9G1 - LPC SIDE BAND
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001B, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J8F1 - UNIFIED
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001C, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J6F1 - LVDS
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001D, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2F1 - LAI FAN
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001E, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2G1 - GFX VID
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001F, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1G6 - AC JACK
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0020, DMI type 9, 17 bytes
System Slot Information
	Designation: J6B2
	Type: x16 PCI Express
	Current Usage: In Use
	Length: Long
	ID: 0
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported
	Bus Address: 0000:00:01.0

Handle 0x0021, DMI type 10, 10 bytes
On Board Device 1 Information
	Type: Video
	Status: Enabled
	Description: Intel(R) HD Graphics Device
On Board Device 2 Information
	Type: Ethernet
	Status: Enabled
	Description: Intel(R) Gigabit Ethernet Device
On Board Device 3 Information
	Type: Sound
	Status: Enabled
	Description: Intel(R) High Definition Audio Device

Handle 0x0022, DMI type 11, 5 bytes
OEM Strings
	String 1: To Be Filled By O.E.M.

Handle 0x0023, DMI type 12, 5 bytes
System Configuration Options
	Option 1: To Be Filled By O.E.M.

Handle 0x0024, DMI type 32, 20 bytes
System Boot Information
	Status: No errors detected

Handle 0x0025, DMI type 41, 11 bytes
Onboard Device
	Reference Designation:  Intel(R) HD Graphics Device
	Type: Video
	Status: Enabled
	Type Instance: 1
	Bus Address: 0000:00:02.0

Handle 0x0026, DMI type 41, 11 bytes
Onboard Device
	Reference Designation:  Intel(R) 82579V Gigabit Ethernet Device
	Type: Ethernet
	Status: Enabled
	Type Instance: 1
	Bus Address: 0000:00:19.0

Handle 0x0027, DMI type 41, 11 bytes
Onboard Device
	Reference Designation:  Intel(R) High Definition Audio Device
	Type: Sound
	Status: Enabled
	Type Instance: 1
	Bus Address: 0000:00:1b.0

Handle 0x0028, DMI type 17, 34 bytes
Memory Device
	Array Handle: 0x0007
	Error Information Handle: Not Provided
	Total Width: 64 bits
	Data Width: 64 bits
	Size: 8192 MB
	Form Factor: SODIMM
	Set: None
	Locator: DIMM1
	Bank Locator: CHANNEL A DIMM0
	Type: DDR3
	Type Detail: Synchronous
	Speed: 1600 MHz
	Manufacturer: Transcend
	Serial Number: 0009A6C9
	Asset Tag: 9876543210
	Part Number: JM1600KSH-8G
	Rank: 2
	Configured Clock Speed: 1600 MHz

Handle 0x0029, DMI type 20, 35 bytes
Memory Device Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x001FFFFFFFF
	Range Size: 8 GB
	Physical Device Handle: 0x0028
	Memory Array Mapped Address Handle: 0x002F
	Partition Row Position: Unknown
	Interleave Position: 1
	Interleaved Data Depth: 2

Handle 0x002B, DMI type 4, 42 bytes
Processor Information
	Socket Designation: CPU 1
	Type: Central Processor
	Family: Core i3
	Manufacturer: Intel(R) Corporation
	ID: A9 06 03 00 FF FB EB BF
	Signature: Type 0, Family 6, Model 58, Stepping 9
	Flags:
		FPU (Floating-point unit on-chip)
		VME (Virtual mode extension)
		DE (Debugging extension)
		PSE (Page size extension)
		TSC (Time stamp counter)
		MSR (Model specific registers)
		PAE (Physical address extension)
		MCE (Machine check exception)
		CX8 (CMPXCHG8 instruction supported)
		APIC (On-chip APIC hardware supported)
		SEP (Fast system call)
		MTRR (Memory type range registers)
		PGE (Page global enable)
		MCA (Machine check architecture)
		CMOV (Conditional move instruction supported)
		PAT (Page attribute table)
		PSE-36 (36-bit page size extension)
		CLFSH (CLFLUSH instruction supported)
		DS (Debug store)
		ACPI (ACPI supported)
		MMX (MMX technology supported)
		FXSR (FXSAVE and FXSTOR instructions supported)
		SSE (Streaming SIMD extensions)
		SSE2 (Streaming SIMD extensions 2)
		SS (Self-snoop)
		HTT (Multi-threading)
		TM (Thermal monitor supported)
		PBE (Pending break enabled)
	Version: Intel(R) Core(TM) i3-3217U CPU @ 1.80GHz
	Voltage: 5.7 V
	External Clock: 100 MHz
	Max Speed: 1800 MHz
	Current Speed: 1800 MHz
	Status: Populated, Enabled
	Upgrade: Socket BGA1155
	L1 Cache Handle: 0x0004
	L2 Cache Handle: 0x0005
	L3 Cache Handle: 0x0006
	Serial Number: Not Specified
	Asset Tag: Fill By OEM
	Part Number: Fill By OEM
	Core Count: 2
	Core Enabled: 2
	Thread Count: 4
	Characteristics:
		64-bit capable

Handle 0x002C, DMI type 17, 34 bytes
Memory Device
	Array Handle: 0x0007
	Error Information Handle: Not Provided
	Total Width: 64 bits
	Data Width: 64 bits
	Size: 8192 MB
	Form Factor: SODIMM
	Set: None
	Locator: DIMM2
	Bank Locator: CHANNEL B DIMM0
	Type: DDR3
	Type Detail: Synchronous
	Speed: 1600 MHz
	Manufacturer: Transcend
	Serial Number: 0009A6C9
	Asset Tag: 9876543210
	Part Number: JM1600KSH-8G
	Rank: 2
	Configured Clock Speed: 1600 MHz

Handle 0x002D, DMI type 20, 35 bytes
Memory Device Mapped Address
	Starting Address: 0x00200000000
	Ending Address: 0x003FFFFFFFF
	Range Size: 8 GB
	Physical Device Handle: 0x002C
	Memory Array Mapped Address Handle: 0x002F
	Partition Row Position: Unknown
	Interleave Position: 2
	Interleaved Data Depth: 2

Handle 0x002F, DMI type 19, 31 bytes
Memory Array Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x003FFFFFFFF
	Range Size: 16 GB
	Physical Array Handle: 0x0007
	Partition Width: 4

Handle 0x0047, DMI type 131, 64 bytes
OEM-specific Type
	Header and Data:
		83 40 47 00 31 00 00 00 00 00 00 00 00 00 00 00
		F8 00 56 1E FF FF FF FF 01 20 00 00 01 00 08 00
		E0 04 00 00 00 00 00 00 C8 00 03 15 00 00 00 00
		00 00 00 00 66 00 00 00 76 50 72 6F 00 00 00 00

Handle 0x0048, DMI type 13, 22 bytes
BIOS Language Information
	Language Description Format: Long
	Installable Languages: 1
		en|US|iso8859-1
	Currently Installed Language: en|US|iso8859-1

Handle 0x0049, DMI type 127, 4 bytes
End Of Table

lscpuはこんな。

# lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                4
On-line CPU(s) list:   0-3
Thread(s) per core:    2
Core(s) per socket:    2
CPU socket(s):         1
NUMA node(s):          1
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 58
Stepping:              9
CPU MHz:               1797.667
BogoMIPS:              3595.33
Virtualization:        VT-x
L1d cache:             32K
L1i cache:             32K
L2 cache:              256K
L3 cache:              3072K
NUMA node0 CPU(s):     0-3

/proc/cpuinfo

# cat /proc/cpuinfo
processor	: 0
vendor_id	: GenuineIntel
cpu family	: 6
model		: 58
model name	: Intel(R) Core(TM) i3-3217U CPU @ 1.80GHz
stepping	: 9
cpu MHz		: 1797.667
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 0
cpu cores	: 2
apicid		: 0
initial apicid	: 0
fpu		: yes
fpu_exception	: yes
cpuid level	: 13
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 x2apic popcnt xsave avx f16c lahf_lm arat epb xsaveopt pln pts dts tpr_shadow vnmi flexpriority ept vpid fsgsbase smep erms
bogomips	: 3595.33
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

processor	: 1
vendor_id	: GenuineIntel
cpu family	: 6
model		: 58
model name	: Intel(R) Core(TM) i3-3217U CPU @ 1.80GHz
stepping	: 9
cpu MHz		: 1797.667
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 1
cpu cores	: 2
apicid		: 2
initial apicid	: 2
fpu		: yes
fpu_exception	: yes
cpuid level	: 13
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 x2apic popcnt xsave avx f16c lahf_lm arat epb xsaveopt pln pts dts tpr_shadow vnmi flexpriority ept vpid fsgsbase smep erms
bogomips	: 3595.33
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

processor	: 2
vendor_id	: GenuineIntel
cpu family	: 6
model		: 58
model name	: Intel(R) Core(TM) i3-3217U CPU @ 1.80GHz
stepping	: 9
cpu MHz		: 1797.667
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 0
cpu cores	: 2
apicid		: 1
initial apicid	: 1
fpu		: yes
fpu_exception	: yes
cpuid level	: 13
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 x2apic popcnt xsave avx f16c lahf_lm arat epb xsaveopt pln pts dts tpr_shadow vnmi flexpriority ept vpid fsgsbase smep erms
bogomips	: 3595.33
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

processor	: 3
vendor_id	: GenuineIntel
cpu family	: 6
model		: 58
model name	: Intel(R) Core(TM) i3-3217U CPU @ 1.80GHz
stepping	: 9
cpu MHz		: 1797.667
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 1
cpu cores	: 2
apicid		: 3
initial apicid	: 3
fpu		: yes
fpu_exception	: yes
cpuid level	: 13
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 x2apic popcnt xsave avx f16c lahf_lm arat epb xsaveopt pln pts dts tpr_shadow vnmi flexpriority ept vpid fsgsbase smep erms
bogomips	: 3595.33
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

とりあえず暫くはエージング、と。

タイトルとURLをコピーしました
